Heavy Duty Battery Storage and Shipping

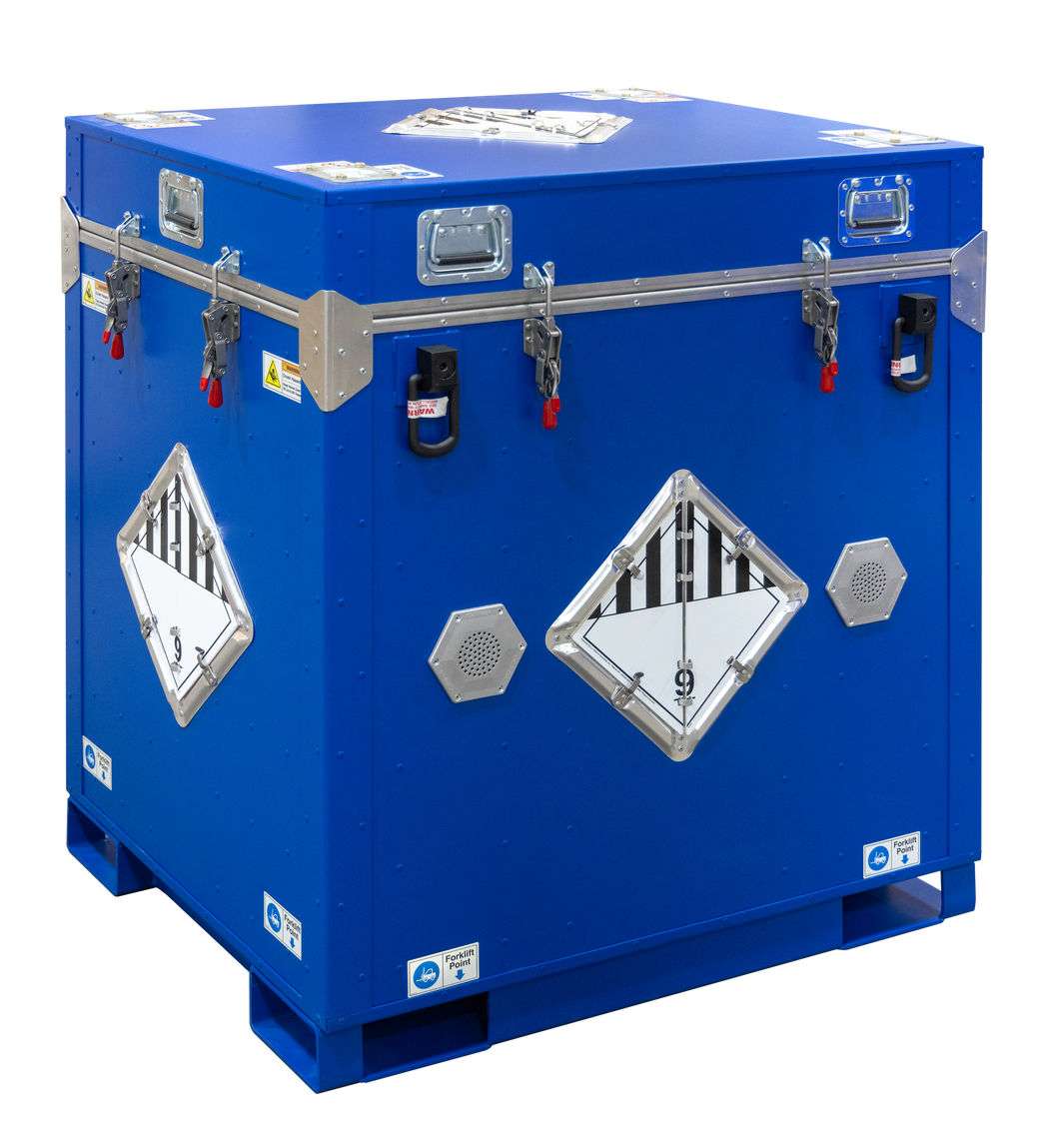

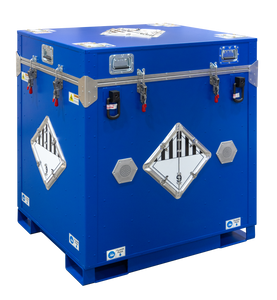

Designed for durable performance in underground mining operations, where safety is paramount. The CellBlock 4635 XLS Case is capable of accommodating large-format batteries and offers absolute maximum protection against lithium-ion thermal events with 360° fire suppression coverage for all of its contents.
Each case is double-lined with .125 inch steel and CellBlock’s proprietary fire panels. The pressure relief system mitigates smoke and fumes and eliminates risk of explosion due to overpressurization.
- Patented FCP Technology
- Double-lined with 1/8th inch steel
- CellBlockEX deployment
- Gas mitigation
- Forklift glides
- Safety placards
- Adjustable battery tie-down system
- UN rated and Special Permit 20549 and 21442 authorized
- P911/LP906 Tested and Certified
- Safe and compliant transportation of batteries, including damaged, defective, and prototype.
- Safe on-site storage of batteries
- OPTIONAL battery support tray
- OPTIONAL fire-suppression pillows
- OPTIONAL TAS (Thermal Alert System)
Specifications:
Product SKU: CBSTC4635
ECR (Energy Containment Rating): 100 kWh
UN Mark: 50A/X/S/**/USA/M6484/0/1447
Exterior: 49.6” x 38.6” x 53.9”h (126cm x 98cm x 136.9cm)
Interior: 40.8” x 29.8” x 40.4”h (103.6cm x 75.7cm x 102.6cm)
Tare Weight: 1167 lbs (529 kg)
Max Content Weight: 2023 lbs max. (918 kg max.)
Gross Weight Limit: 3190 lbs max. (1447 kg max.)
Please inquire about delivery times.
CONTACT US FOR INTERNATIONAL SHIPMENTS:
Did you know we can ship CellBlock products anywhere? Shop our online store and place your orders for delivery to Canada or the United States. For all other locations, please reach out so that we may ensure your order receives the special attention that international orders require.
